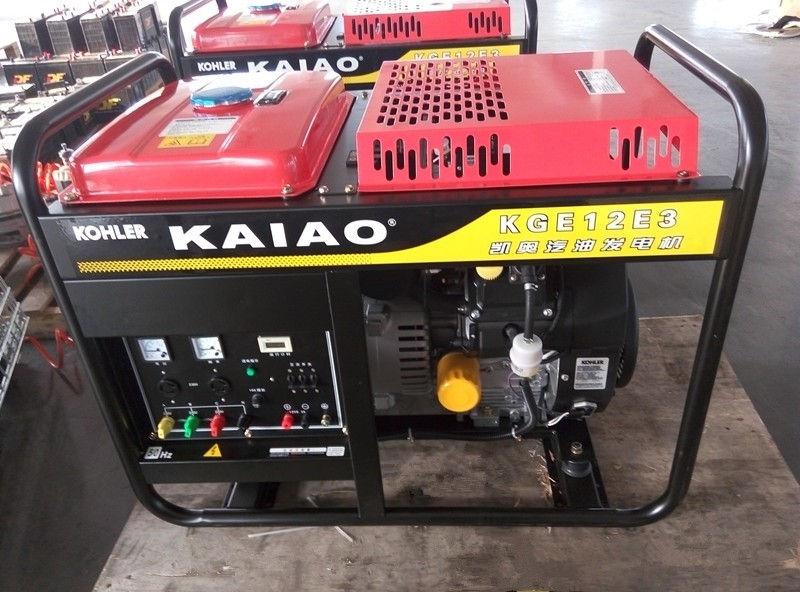

12.5KVA AC Three Phase Kohler Gasoline Generator Set With 3000 / 3600rpm Speed
جزئیات محصول:
Place of Origin: | WUXI of China |
نام تجاری: | KAIAO |
گواهی: | CE |
Model Number: | KGE12E3 |
پرداخت:
Minimum Order Quantity: | 10 units |
---|---|
قیمت: | USD$1680.FOB.Shanghai |
Packaging Details: | Carton Packages |
Delivery Time: | 25 woring days |
Supply Ability: | 10000 units per month |
اطلاعات تکمیلی |
|||
مدل: | مجموعه ژنراتور بنزینی سه فاز KGE12E3/AC | فاز: | AC سه فاز |
---|---|---|---|
فرکانس: | 50/60 هرتز | توان نامی (kVA): | 12.5KVA |
حداکثر توان: | 13.75KVA | ولتاژ (v): | 230/400 ولت |
جریان (A): | 18A | سرعت: | 3000/3600 دور در دقیقه |
ضریب قدرت: | 0.8 | مدل موتور: | KOHLER.OHV، موتور بنزینی هوا خنک |
ابعاد ((L*W*H): | 995*630*790 میلیمتر | ||
برجسته کردن: | مجموعه ژنراتور بنزین سه فاز کولر,12.5KVA AC ژنراتور بنزین آماده,مجموعه ژنراتور بنزین 3600 دور در دقیقه,12.5KVA AC gasoline standby generator,3600rpm Speed Gasoline Generator Set |
توضیحات محصول
12KVA AC Three Phase KOHLER gasoline generator set

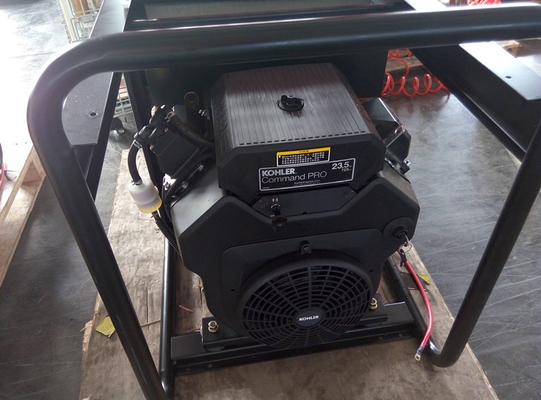

All generators are equipped with original USA Kohler air-cooled petrol engines
Control Panel
All control units are set on one panel and Digital control panel is optional which will display the running data including output voltage, current, running hours etc.
Low oil alarm system
Before the fuel level drops to the limited level, the generator will stop automatically and it can be restarted only if the fuel is refilled.
Application of AVR
The AVR (Automatic Voltage Regulator) can ensure the output to be smooth and provide reasonable protection against the overload of the generator to avoid damage the set.
Advanced Alternator
100% copper wire, waveform distortion is kept at a Min. level and the output is stable.
ATS System
The ATS system (Automatic Transfer Switch) will give commands to start the genset automatically if the Mains Power fails or the voltage & frequency of the mains power become abnormal. As the mains power is restored, ATS shifts the load back to the mains power and shuts down the genset.
