5KVA Air Cooled Diesel Generator Set With 3000/3600rpm Engine Speed Rpm
جزئیات محصول:
| Place of Origin: | Wuxi of China |
| نام تجاری: | KAIAO |
| گواهی: | CE |
| Model Number: | KDE6500E3 |
پرداخت:
| Minimum Order Quantity: | 10 uints |
|---|---|
| قیمت: | US$383.FOB.Shanghai |
| Packaging Details: | Carton Packages |
| Delivery Time: | 20-25 days working days |
| Supply Ability: | 10000 sets per month |
|
اطلاعات تکمیلی |
|||
| مدل: | KDE6500E3/قاب باز | فرکانس (هرتز): | 50/60 هرتز |
|---|---|---|---|
| توان نامی (kVA): | 5.5KVA | حداکثر توان (KVA): | 6KVA |
| ولتگا (V): | 230/400 ولت | جریان (A): | 7.9A |
| سرعت موتور (دور در دقیقه): | 3000/3600 دور در دقیقه | فاز: | AC سه فاز |
| ضریب قدرت: | 0.8 | سطح نویز (dB(A): | 77dB ((A) |
| ظرفیت مخزن سوخت (L): | 12.5 لیتر | مدل موتور: | KA186FA/موتور دیزل تک سیلندر هوا خنک |
| وزن (کیلوگرم): | 100 کیلوگرم | ابعاد ((L*W*H): | 760*515*710 میلی متر |
| برجسته کردن: | مجموعه ژنراتور دیزل 5KVA باز با خنک کننده هوا,3600rpm موتور یک سیلندر ژنراتور دیزل,3600rpm Engine Single Cylinder Diesel Generator |
||
توضیحات محصول

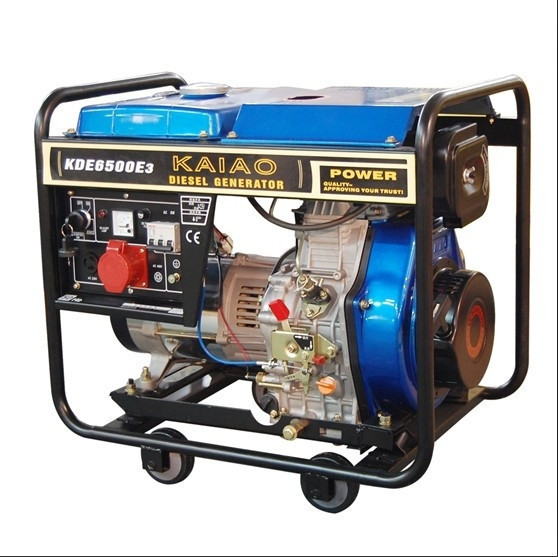

KDE6500E3 AC Three Phase Open-frame air-cooled diesel generator set
50/60HZ Electric start
All generators are equipped with original USA Kohler air-cooled petrol engines
Control Panel
All control units are set on one panel and Digital control panel is optional which will display the running data including output voltage, current, running hours etc.
Low oil alarm system
Before the fuel level drops to the limited level, the generator will stop automatically and it can be restarted only if the fuel is refilled.
Application of AVR
The AVR (Automatic Voltage Regulator) can ensure the output to be smooth and provide reasonable protection against the overload of the generator to avoid damage the set.
Advanced Alternator
100% copper wire, waveform distortion is kept at a Min. level and the output is stable.
ATS System
The ATS system (Automatic Transfer Switch) will give commands to start the genset automatically if the Mains Power fails or the voltage & frequency of the mains power become abnormal. As the mains power is restored, ATS shifts the load back to the mains power and shuts down the genset.
